This cartridge features a fine chisel at the tip. Its short and thick body has been optimized for thermal performance and works well with smd components and small pins.
It is designed for use in Automated Soldering Processes.
The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.
This cartridge fits TR245 General Soldering Tool and TRA245 Automatic General Soldering Tool.
JBC also offers the possibility to manufacture your special tip geometry. Do not hesitate to ask us on customtips@jbctools.com.
This website uses own and third-party technical, analysis and advertising cookies to
anonymously facilitate browsing, customise the advertising and analyse website use statistics. We deem that by
continuing to browse you accept their use. Learn more
Storage Preferences
When you visit websites, they may store or retrieve
data about you using cookies and similar technologies ("cookies"). Cookies may be necessary for the
basic functionality of the website as well as other purposes. You have the option of disabling certain
types of cookies, although doing so may impact your experience on the website.

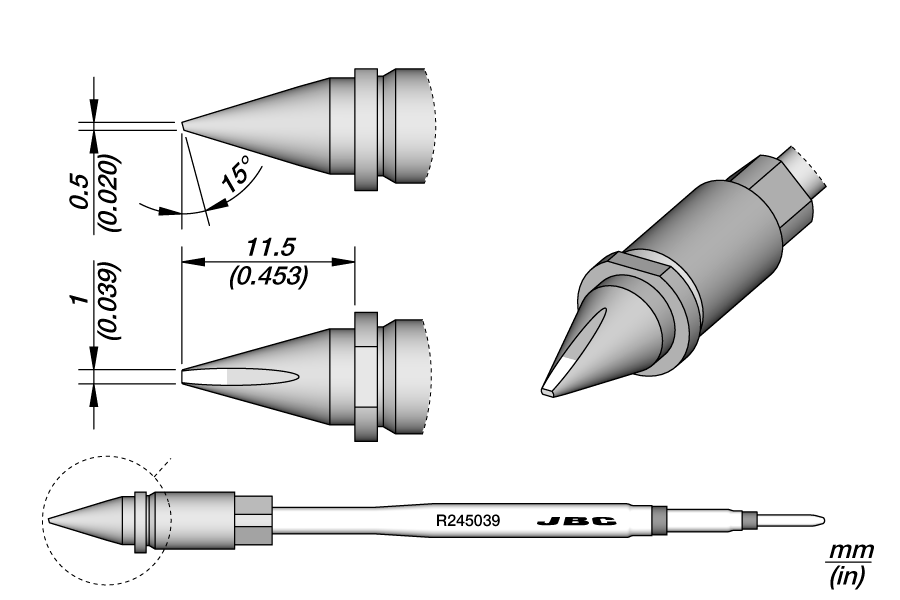

_Completa.gif "R245039 - Chisel Cartridge 1 x 0.5")
